Description
Features
- Excellent Electrical Insulation：Provides reliable protection against voltage and current leakage.
- High Adhesion & Durability：Strong bonding, resistant to aging and wear.
- Temperature Resistance：Stable performance under high and low temperatures.
- Flame Retardant & Safety：Optional flame-retardant grades ensure safe application.
- Chemical & Moisture Resistance：Withstands oils, solvents, and humidity.
Applications
- Electrical Wiring & Cable Wrapping：Insulation and protection for wires, harnesses, and cables.

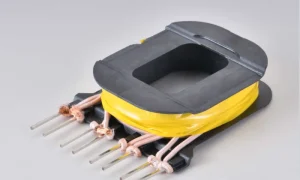

- Motor & Transformer Coils：Used for slot insulation, binding, and fixing.
- Electronics & PCB Protection：Masking and shielding in electronic assembly.
- Automotive Industry：Harness wrapping, component insulation, and heat resistance.
- General Industrial Use：Suitable for maintenance, repair, and protective applications.
Specifications
| Core inner diameter | 73MM±1，38MM±1 |
| Flame retardant grade | UL94V1 |
| Breakdown voltage | ≥4.20KV GB7752-87 |
| Electrolytic corrosion coefficient | 0.98 |
| Heat resistance | -10C-130℃ |
| Solvent resistance | Special grade tape is resistant to any chemical solvents, and first grade tape is resistant to xylene and ethyl acetate. |
| Peel strength | >300N/M |
| Tensile strength | ≥3.20KN/MM |
| Weather resistance | According to UL510 standard, the tape remains unchanged after 100 hours of storage |
| Cold resistance | ≥-10℃ |
| Color | Light yellow. Dark yellow. Blue, red, green, black, white. Transparent |
| Tape thickness | 0.055MM±MH0.005IMM；0.08MM±0.005MM GB7125 |
| Dimensions | 5MMM–1280MM |
| Application | Used for various motors, transformers, etc. |
