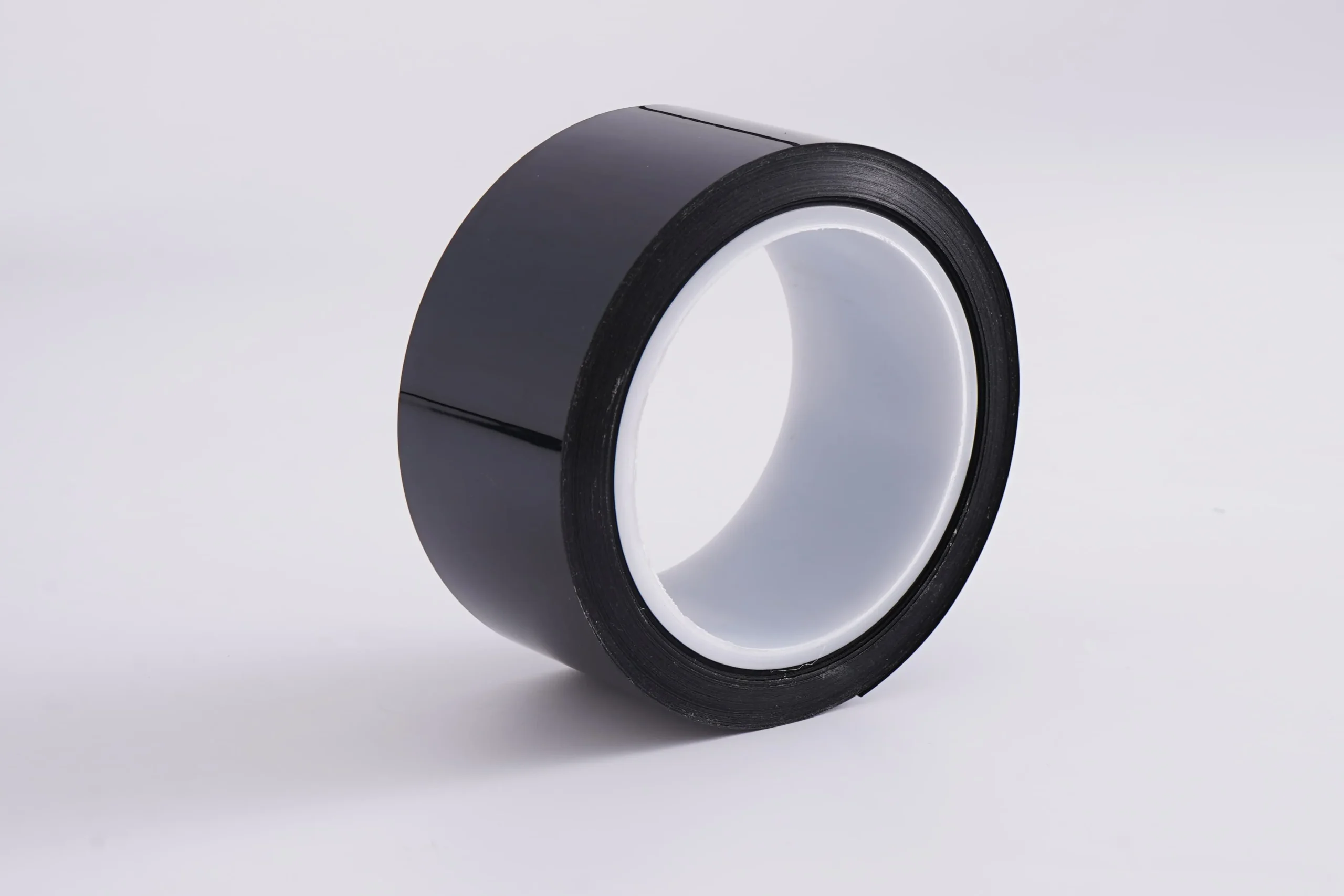

Description
Features
- Smooth surface with superior release performance
- High dimensional stability and resistance to heat and chemicals
- Available in single-sided or double-sided release options
- Clean separation with no transfer or residue
Applications
- Base material for adhesive tapes, double-sided tapes, and foam tapes
- Widely used in electronics and insulation materials
- Applied in composite material molding and carbon fiber products
- Suitable for labels, stickers, and lamination processes
Specifications
| Core Inner Diameter | 76MM±1，38MMM±1 |
| Flame Retardant Grade | UL94V1 |
| Breakdown Voltage | ≥4.20KV GB7752-87 |
| Electrolytic Corrosion Coefficient | 0.98 |
| Heat Resistance | -10C-130℃ |
| Solvent Resistance | Special grade tape is resistant to any chemical solvents, and first grade tape is resistant to xylene and ethyl acetate. |
| Peel Strength | >300N/M |
| Tensile Strength | ≥3.20KN/MM |
| Weather Resistance | According to UL510 standard, the tape remains unchanged after 100 hours of storage |
| Cold Resistance | ≥-10℃ |
| Color | Light yellow. Dark yellow. Blue, red, green, black, white. Transparent |
| Tape Thickness | 0.055MM±MH0.005IMM；0.08MM±0.005MM GB7125 |
| Release Liner/Paper Thickness | 0.025mm 0.05mm 0.075mm |
| Dimensions | 5MMM–1280MM |
| Application | Used for various motors, transformers, etc. |
| Stock Conditions | Temperature: 25℃ Humidity: 70%RH |
| Stock Expiration Date | 1-2 years |
