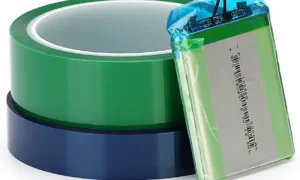

Description
Features
- Strong adhesion ensuring firm and secure tape termination
- Excellent electrical insulation and mechanical strength
- Heat, aging, and chemical resistant for long-term reliability
- Easy application with clean and smooth finish
- Available in different widths and thicknesses for flexible use
Applications

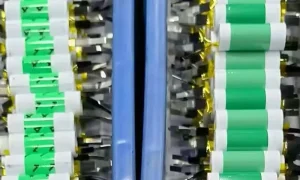

- Widely used for coil, transformer, and motor winding terminations
- Ideal for electrical insulation and secure wrapping in high-voltage equipment
- Applied in automotive, electronics, and industrial assembly processes
- Suitable for bundling, fixing, and protecting wire harnesses
Specifications
| ltems | Standards | Test Method |
| Backing | PET | / |
| Width (mm) | Median ±0.5 | Vernier Caliper |
| Length(m) | Positive Deviation | Meter Counter |
| Backing Thickness(mm) | 0.020±0.002 | Micrometer Thickness Gauge |
| Total Thickness(mm) | 0.030±0.003 | Micrometer Thickness Gauge |
| Adhesive | Acrylic | / |
| Color | Blue | Visual inspection |
| Quick tack(#) | >4 | GB/T 4852-2002 |
| Peel Strength to steel(N25mm) | 4.0~7.0 | GB/T 2792-2014 |
| Unwinding force(N/25mm) | 0.5~2.5 | GB/T 4852-2002 |
| Tensile Strength(N/25mm) | ≥60 | GB/T 30776-2014 |
| Resistance of the electrolyte (85’℃*4H | Pass | – |
| High temperature resistance(℃) | ≥120 | – |
| ROHS | Qualified | Third-Party Testing |
| Halogen | Qualified | Third-Party Testing |
